Wheelchair Accessible Bathrooms: The Ultimate Design & Layout Guide (2026)

Space, Flow, and Freedom: Designing the Perfect Wheelchair Bathroom

For a full-time wheelchair user, the standard UK bathroom is an obstacle course.
Doorways are too narrow, leading to scraped knuckles. Pedestal sinks block your footplates. And once you are inside, you often can’t close the door because the room is too small to turn around.

Adapting a bathroom for a wheelchair isn’t just about adding safety features; it is about re-engineering the space.

At EA Mobility, we specialise in complex adaptations. Whether you use a manual self-propelled chair or a larger tilt-in-space electric wheelchair, we design rooms that work around you, not the other way around.

Here is the technical (and practical) guide to creating a truly accessible space in 2026.

---

1. The Golden Rule: The 1500mm Turning Circle

The most critical factor in your design is Space.
A standard wheelchair user needs a clear circular space of 1500mm to turn 360 degrees comfortably without doing a multi-point turn.

• The Reality: Most UK bathrooms (1.7m x 2m) are too small for this if filled with standard fixtures.

• The Solution: We use “Space Reclaiming” techniques:

1. Removing the bath (converting to a wet room).
2. Using a Wall-Hung Toilet (the cistern is hidden in the wall, saving 200mm depth).
3. Installing a Sliding Pocket Door (reclaiming the swing space).

• Note: If you have a larger electric chair, we measure your specific turning axis during our survey to guarantee it fits.

---

2. The “Knee Space” Essential (Basins)

Standard pedestal basins are impossible for wheelchair users. The ceramic pedestal hits your footrests long before your hands reach the tap.

The Fix: Wall-Hung or Rise & Fall Basins

• Wall-Hung: Mounted on heavy-duty brackets with the waste pipe recessed into the wall. This leaves the space underneath completely clear for your knees.

• Rise & Fall: If the bathroom is shared with standing family members, a powered basin that moves up and down ensures it is the perfect height for everyone.

• Read our full guide: Accessible Basins & Sinks.

---

3. The Transfer Zone (Toilet Layout)

Getting from the wheelchair onto the toilet is often the hardest manoeuvre.
We design a specific “Transfer Zone” based on your strength and preferred side.

• Lateral Transfer: We ensure there is a clear space (min 750mm) alongside the toilet for you to park your chair parallel to the pan.

• Drop-Down Rails: A strong, hinged rail on the transfer side locks down to support your weight during the move, then folds up to let the chair in.

• Pan Projection: We use toilets that project 700mm or more from the wall. This lines the front of the toilet up with the front of your wheelchair seat, making the slide across safer.

---

4. The Wet Room Floor (Zero Drag)

For a wheelchair, a shower tray—even a low profile one—is a bump. Bumps cause drag, jar the spine, and make rolling difficult.

The Solution: The Structural Wet Room
We install a fully tanked, level-access floor.

• No Lips: The vinyl is completely flat. You can roll straight under the shower.

• Heavy Duty: We use structural formers capable of supporting the point-load weight of a heavy powerchair (up to 300kg+).

• Slip Resistance: We use R11 or R12 Safety Vinyl. This is tough enough to withstand tyre friction without tearing, yet grippy for carers walking on wet floors.

---

5. Ceiling Hoists (The “X-Y” System)

If self-transfer isn’t possible, you might need a hoist. Mobile floor hoists are bulky and hard to move on carpet/vinyl transitions.

The Solution: Ceiling Track Hoists
We can install an X-Y (H-Frame) System on the ceiling.

• Why? It covers the entire room. You can be lifted from a shower chair, moved to the toilet, and then to the shower area in one smooth movement.

• Space Saving: The motor lives on the ceiling, leaving the floor totally clear.

• Read more: Hoist Comparison Guide.

---

6. The Doorway (Getting In)

A standard UK bathroom door is 762mm (2’6″). Once you account for the door stops and hinges, the clear opening is often less than 700mm. This is a tight squeeze for many chairs and leads to scraped knuckles.

The Fix:

• Door Widening: We widen the structural opening to at least 900mm.

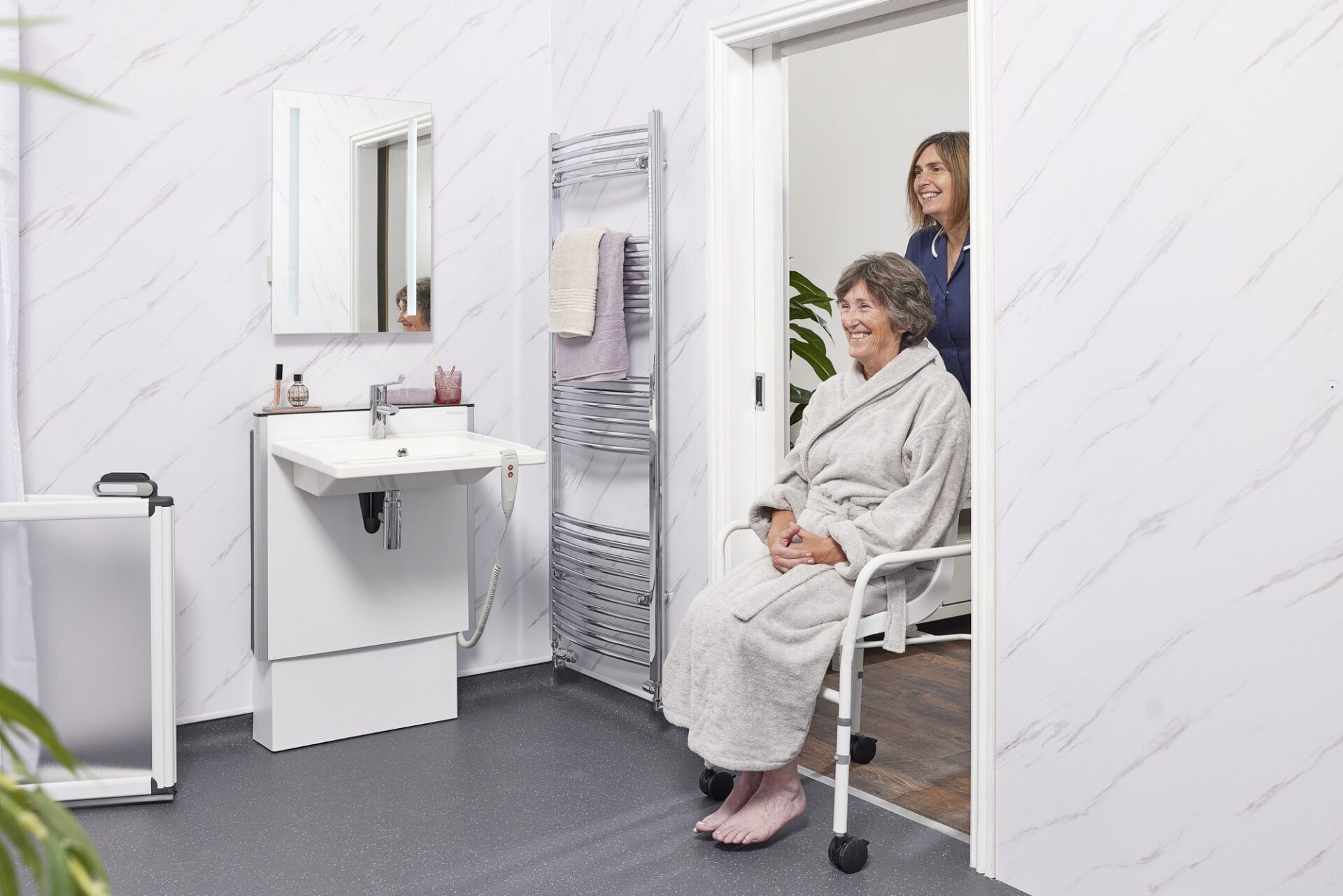

• Pocket Doors: We slide the door into the wall cavity. This is the ultimate space-saver for wheelchair access.

---

How Much Does a Wheelchair Bathroom Cost?

Because these bathrooms involve structural work (widening doors, reinforcing walls for hung toilets, floor strengthening), they cost more than a standard adaptation.

• Full Conversion: Typically £8,000 – £12,000+.

• VAT Relief: This work is Zero Rated for VAT. You save 20% immediately.

• Grants: If the cost is prohibitive, you may be eligible for a Disabled Facilities Grant (DFG) up to £30,000.

*Note: Grants wording along the lines of Grant applications can be complex and lengthy, often taking 1-2 years to process and requiring detailed eligibility and project criteria. Therefore, we are unable to support these processes and thus our services are focused on clients funding their projects personally so that we can work in a reasonable timescale to offer our clients the best service. We recommend you contact your local council for assistance.

---

Frequently Asked Questions

Q: Does it have to look like a “Doc M” hospital toilet?
A: No. While “Doc M” packs are great for public toilets, they can be ugly. In your home, we use Luxury Accessible fixtures—matte black rails, modern wall-hung toilets, and stone-effect flooring. You get the compliance without the clinical look.

Q: Can I keep a bath?
A: Usually, no. Unless the room is very large, a bath eats up the “Turning Circle” space. A wet room is almost always the safer, more functional choice for wheelchair users.

Q: Are your designs Part M Compliant?
A: Yes. We follow Document M (Building Regulations) guidelines for layout, rail height, and door widths to ensure your home is as accessible as a public facility, but with a homely design.

---

Let’s Design Your Freedom

Don’t accept a bathroom that limits you.

Book a Free Technical Survey
Our surveyors will measure your wheelchair width, turning circle, and reach range to design a bathroom that fits you perfectly.
